Model NO.: PC-SPL400
Trademark: PaintColor
Specification: Inside size L-W-H 6.9-4-2.65M
Origin: China
HS Code: 8419899090
Model NO.: PC-SPL400
Trademark: PaintColor
Specification: Inside size L-W-H 6.9-4-2.65M
Origin: China
HS Code: 8419899090

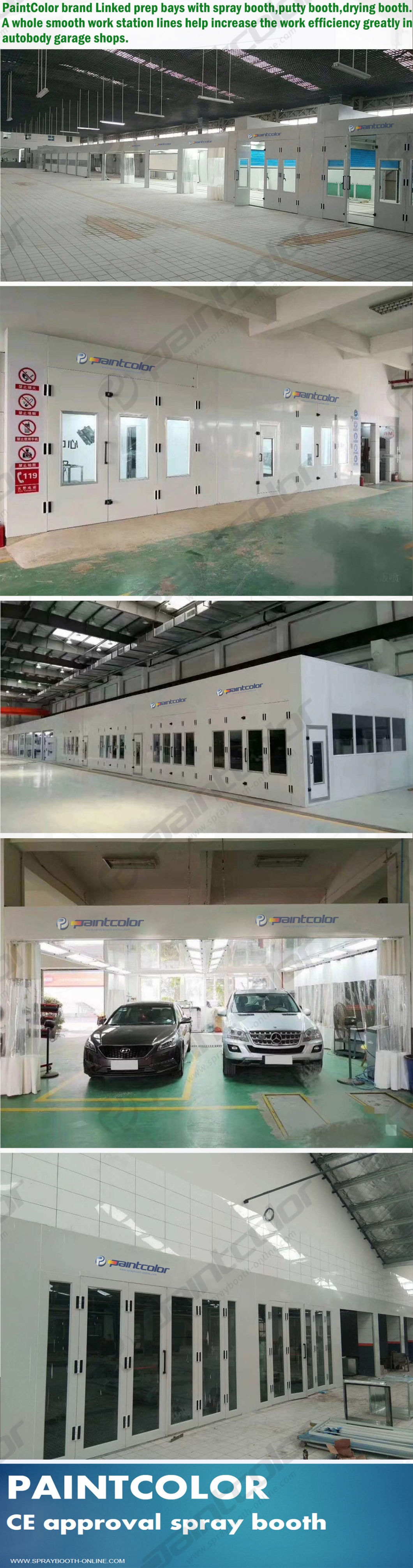

PaintColor Brand Sheet Metal Paint Line Technical FileThe pattern of Sheet metal paint line:
| Procedure | Prepared Cars - Metal Sheet Disassemble - Puttying - Putty Polishing - Sanding Middle Coat and Primer Paint - Clean and Cover - Surface Coating - Baking - Polish - Assembly |
| Station Number | 10 pcs |
| Optional Equipments | Infrared lamp (For Sanding Middle Coat and Primer Paint station) Ceiling Movable Pulley Infrared Lamp (For baking station) |
| Optional Quantity of equipment | Sanders with dust extraction 4 sets, Spray Gun 2 sets, Air compressor 2 sets, equipped the air tube, other tools etc. The power supply and concrete foundation prepared by the buyer, the supplier provide the drawing of foundation. |
| Estimated Procedure Finish Time | Bottleneck Station is Surface Coating, about 30 min, output 15-20 cars per day and 10 work hours a day. |

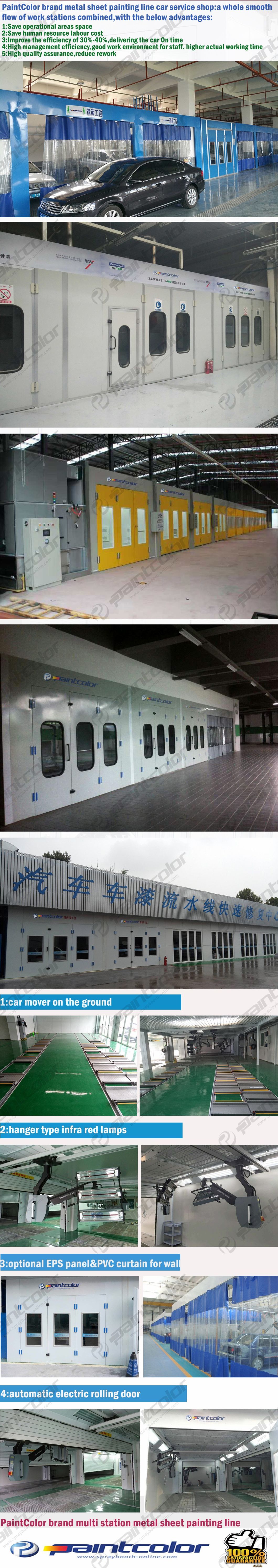

Every Sheet Metal Paint Line equipment bottom has 6 rows track including 4 rows drive track and 2 rows return track. Cars can move left to right or right to left. Equipped 44 sets trolley with brake function. Sanding Middle Coat and Primer Paint booth 2 sides equipped with manual curtain. Surface Coating booth and Baking booth total equipped 3 sets electric rolling door, which can speed up the work efficiency.
Sheet Metal Paint Line Equipment List
| No. |
Item Name/Â Main Function |
Main Specification | Total quantity |
| 1 |
Awaiting Repaired / Metal Sheet Disassemble (Be a Prepared Cars area, can also do the body correction at this area.) |
Station size: 7500×4000×3000 mm, ceiling cover frame, three sides with PVC curtain, back wall 50mm thick EPS panel. |
2 sets  |
|
2 |
Puttying (Be an old coating polish and putty station.) |
A: Station size: 7000×3550×3100 mm, ceiling cover frame, three sides with PVC curtain, back wall 50mm thick EPS panel.
B. 10 units*4pcs=40pcs 36W Philips Lamp; Ballasts Professional and durable.C. With roof air plenum, side wall exhaust, one set 5.5KW exhaust fan. With electric adjustable damper to control airflow volume. |
1 set  |
|
6 |
Surface Coating (Paint spraying operations, no load air speed at 0.5m/s. Fan Brand: Guangdong Detong.) |
A: Inside size 6900×4000×2650 mm (L×W×H)
B: Cabin is 50mm thick double 0.476mm colorful steel skin rockwool panel, front equipped one set main door, two sides door opening with 2 sets rolling curtain, electric drive.
C. Ceiling with 5 units*4pcs=20pcs 36W Philips Lamp, Ballasts Professional and durable.D. With roof air plenum, down ground, full grids, need using spray gun. E. 2 sets 9KW intake fan, total intake air capacity 48000m3/h, one set 15KW exhaust fan, total exhaust air capacity 42000m3/h, motor outside, belt drive. |
1 set  |
|
3 |
Putty Polishing (Be a polish station. Match Sanders with dust extraction usage.) |
A. Inside size 6900×3450×2650 mm (L×W×H), Three sides with PVC curtain, back wall 50mm thick EPS panel. B. 10 units*4pcs=40pcs 36W Philips Lamp; Ballasts Professional and durable. C. With roof air plenum, side wall exhaust, one set 5.5KW exhaust fan. With electric adjustable damper to control airflow volume. |
1 set  |
| 4 |
Sanding Middle Coat and Primer Paint (Be a Primer Paint and Primer Paint baking station. With intake and exhaust system and paint mist treatment system. Fan Brand: Guangdong Detong.) |
A. Inside size 6900×4000×2650 mm (L×W×H), front equipped one set main door, two sides door opening with PVC curtain, back wall 50mm thick EPS panel. B. 10 units*4pcs=40pcs 36W Philips Lamp; Ballasts Professional and durable. C. With roof air plenum, side wall exhaust, need using spray gun, and infrared lamp to bake the Primer Paint. D. One set 5.5KW intake fan, one set 5.5KW exhaust fan, model TAE-450H, air capacity 15000m3/h, belt drive. With manual damper, to control airflow volume. |
1 set  |
| 5 |
Clean and Cover (Be as a Clean and Cover station.) |
Inside size 6900×3550×3100 mm (L×W×H), front and back sides are curtain, bottom and ceiling with 5 units*4pcs=20pcs 36W Philips Lamp; Ballasts Professional and durable. |
1 set  |
|
6 |
Surface Coating (Paint spraying operations, no load air speed at 0.5m/s. Fan Brand: Guangdong Detong.) |
A: Inside size 6900×4000×2650 mm (L×W×H)
B: Cabin is 50mm thick double 0.476mm colorful steel skin rockwool panel, front equipped one set main door, two sides door opening with 2 sets rolling curtain, electric drive.
C. Ceiling with 5 units*4pcs=20pcs 36W Philips Lamp, Ballasts Professional and durable.D. With roof air plenum, down ground, full grids, need using spray gun. E. 2 sets 9KW intake fan, total intake air capacity 48000m3/h, one set 15KW exhaust fan, total exhaust air capacity 42000m3/h, motor outside, belt drive. |
1 set  |
|
8 |
Baking (Diesel burner matching infrared lamp does the sectional repair, oil and electric dual purpose. Fan Brand: Guangdong Detong.) |
A. Inside size 6900×4000×2650 mm (L×W×H), cabin using 50mm thick double 0.476mm colorful steel skin rockwool panel, front equipped one set main door, two sides door opening with 2 sets rolling curtain, electric drive. B. Ceiling with 5 units*4pcs=20pcs 36W Philips Lamp; Ballasts Professional and durable. C. With roof air plenum, down ground, 2 rows of grids and 3 rows of embossed plate. D. Equipped one set suspended ceiling infrared lamp, total 6KW, and equipped with one set G20 oil burner, oil and electric dual purpose. E. One set 5.5KW circulating fan, model TAE-450H, air capacity 15000m3/h, motor outside, belt drive. |
1 set  |
| 9 | Polish/ Assembly | Station inside 7000×3550 mm, ceiling cover frame, three sides with PVC curtain, back wall 50mm thick EPS panel. |
2 sets  |
| 10 | Electric rolling door | Side door opening with 3 sets rolling curtain, electric drive. |
3 sets  |
| 11 |
Track (Cars translational on the assembly line.) |
Track per row 37m, equipped 6 rows crosswise track, total 296 meters, movable trolley. | 222 meters |
| 12 |
Trolley (Cars translational on the assembly line.) |
Total 10 stations, equipped 44 sets trolley with brake system. |
44 sets  |
Q: what is our product advantage?
(1) High quality raw materials such as thicker and stronger steel plates for making spray booth cabin.
(2) Advanced equipment for making the booth parts, such as branded CNC machine, auto cutting machine, hole-making machine, etc., making precise and beautiful looked booth parts.
(3) Professional technician team for a scientific design and layout.
(4) Experienced workmanship during the whole manufacturing process.
(5) With two large production base factories, and we are among the top rank manufacturers in China.
Q: how to get price offer from us?
Tell us your requirements for a paint booth by writing or calling us, we will duly design a booth for you.
Q: What is our warranty?
We offer 12 months warranty and the lifetime maintenance service, solutions will be provided to you for any questions you have about operation of the booth.
Q: how to extend the service life of a paint booth?
It is very important to know how to maintain the booth and we will send you operation instruction and maintenance tips continuously after you finish assemble the booth. A well maintained spray booth will work over 15 years.
When you choose Paintcolor spray booth, you are choosing:
